Required above 3m — always included
All 4 Emirates, no travel charge
Right material for every location
Civil works contractor, all Emirates
Request a Free Quote
Aluminium pergola in Ajman. We respond within 2 hours.
On all ladders above 3m height
All Emirates, no travel charge
Right material per location
Fabricated in Sharjah, UAE
Civil works, all Emirates
A spiral ladder — more precisely a spiral staircase — is a vertical access structure where treads rotate around a central column as they rise. The spiral form uses a fraction of the floor area of a conventional staircase while still providing comfortable, two-handed step-by-step ascent. In UAE villas, mezzanine floors, and loft spaces, spiral ladders are the standard space-saving access solution.
Spiral ladders in the UAE context typically range from compact utility spirals with 60cm diameter for loft or mezzanine access to full architectural spiral staircases of 100cm to 160cm diameter for villa roof terraces and commercial mezzanine floors. The material is most often mild steel with powder coat finish for interior use, or hot-dip galvanized steel for exposed outdoor installations.
A cat ladder — also called a fixed access ladder or fixed vertical ladder — is a straight, wall-mounted or freestanding vertical ladder used to access rooftops, water tanks, plant rooms, service walkways, and elevated industrial platforms across UAE factories, warehouses, and commercial buildings. The term "cat ladder" in UAE construction refers specifically to this type of fixed-rung, vertical-climb ladder as distinct from a portable or leaning ladder.
Cat ladders in the UAE are fabricated from mild steel, hot-dip galvanized steel (GI), or stainless steel depending on the environment. The most critical safety requirement for any cat ladder above 3 metres in a UAE workplace is the safety cage — a series of steel hoops fixed to the ladder uprights at regular intervals that prevent a person from falling backward during a climb. UAE OSHAD standards and MOHRE workplace safety regulations both reference this requirement for industrial access ladders.
UAE workplace safety standards reference fixed ladder safety based on climbing height. This table shows what is required at each height band. We apply these standards on every cat ladder we install across Dubai, Sharjah, Abu Dhabi, and Ajman.
Full safety hoop cage required from 2.5m above base up to the top of the ladder. Cage hoops at maximum 900mm centres. Landing platform at top with safety gate where roof access is provided.
Safety cage is not legally mandatory but is strongly recommended by Blackgold on all permanent fixed industrial ladders in UAE regardless of height. Fall at any height can cause serious injury.

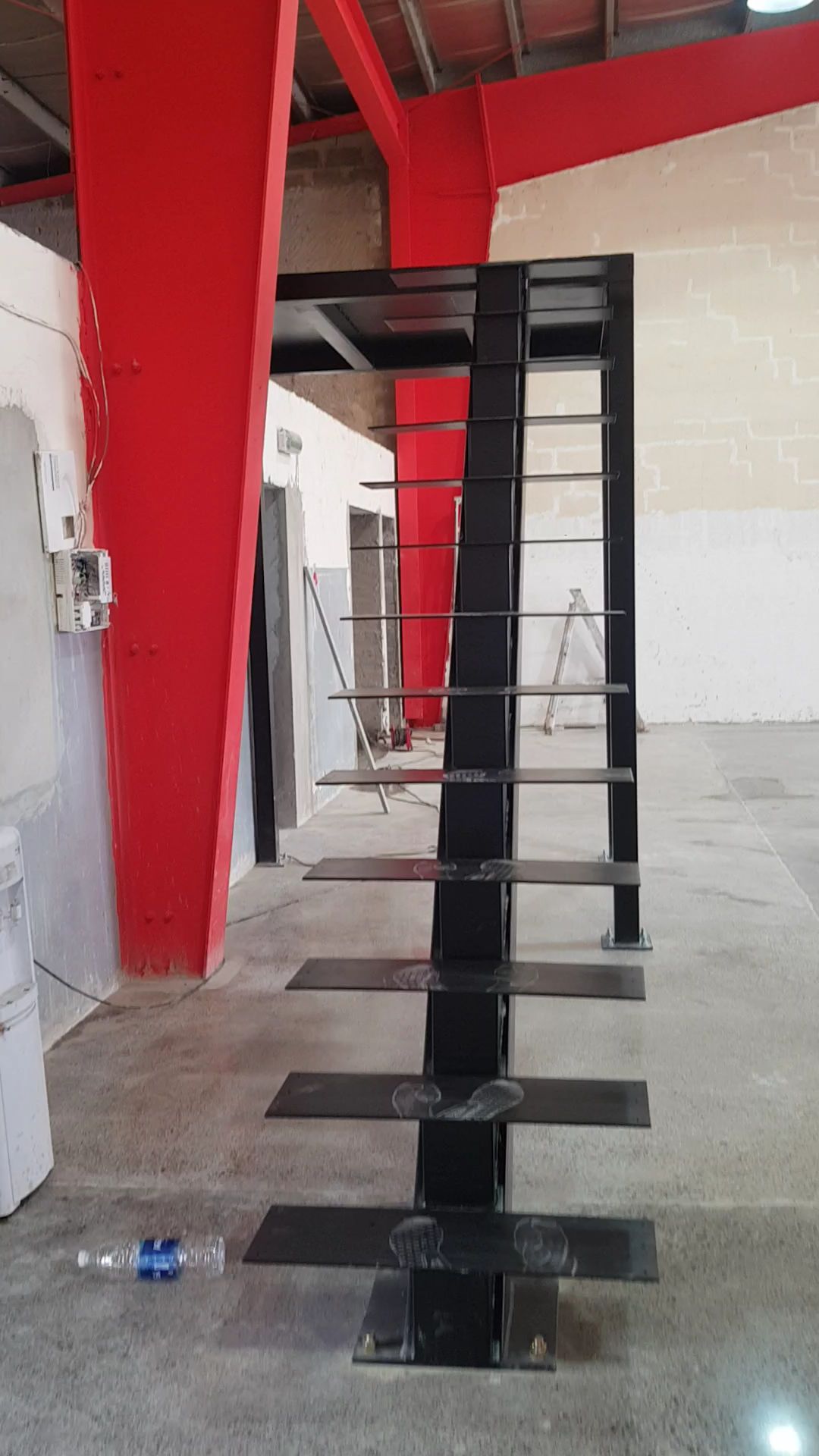

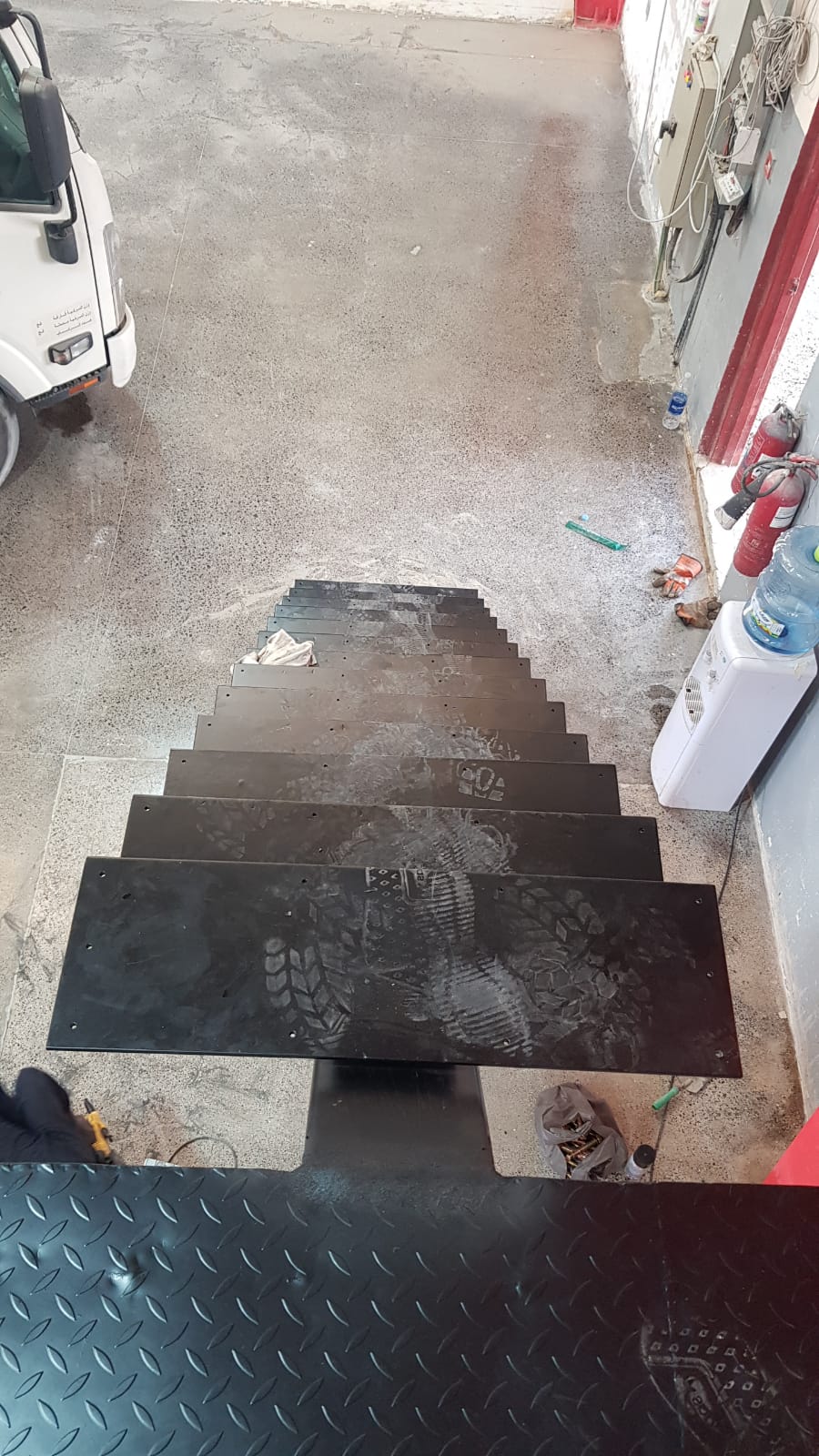

Short fixed access ladders for step-up access to machinery platforms, mezzanine edges, and loading platforms. Full handrail on at least one side. Anti-slip rungs standard on all Blackgold ladder installations.
From compact villa spiral staircases to heavy-duty industrial cat ladders with safety cage — every type fabricated in our Sharjah workshop to your exact dimensions.

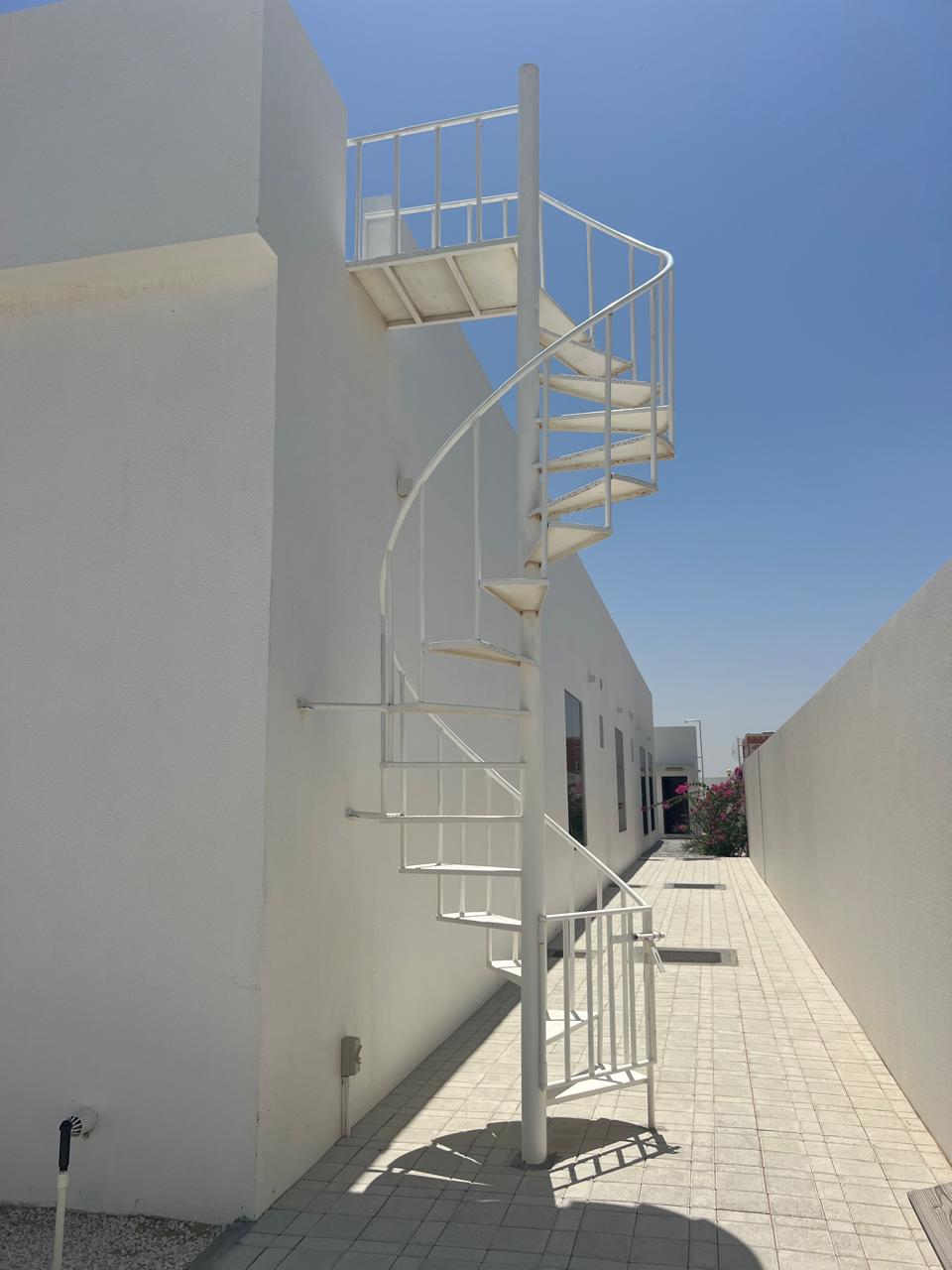

Space-saving spiral staircase for villa lofts, mezzanine access, and roof terrace entry where floor space is limited. Central steel column with flat plate or chequer plate treads. Available in mild steel with powder coat or hot-dip galvanized finish. This is the most common spiral ladder installed in UAE villas across Dubai, Sharjah, and Ajman.

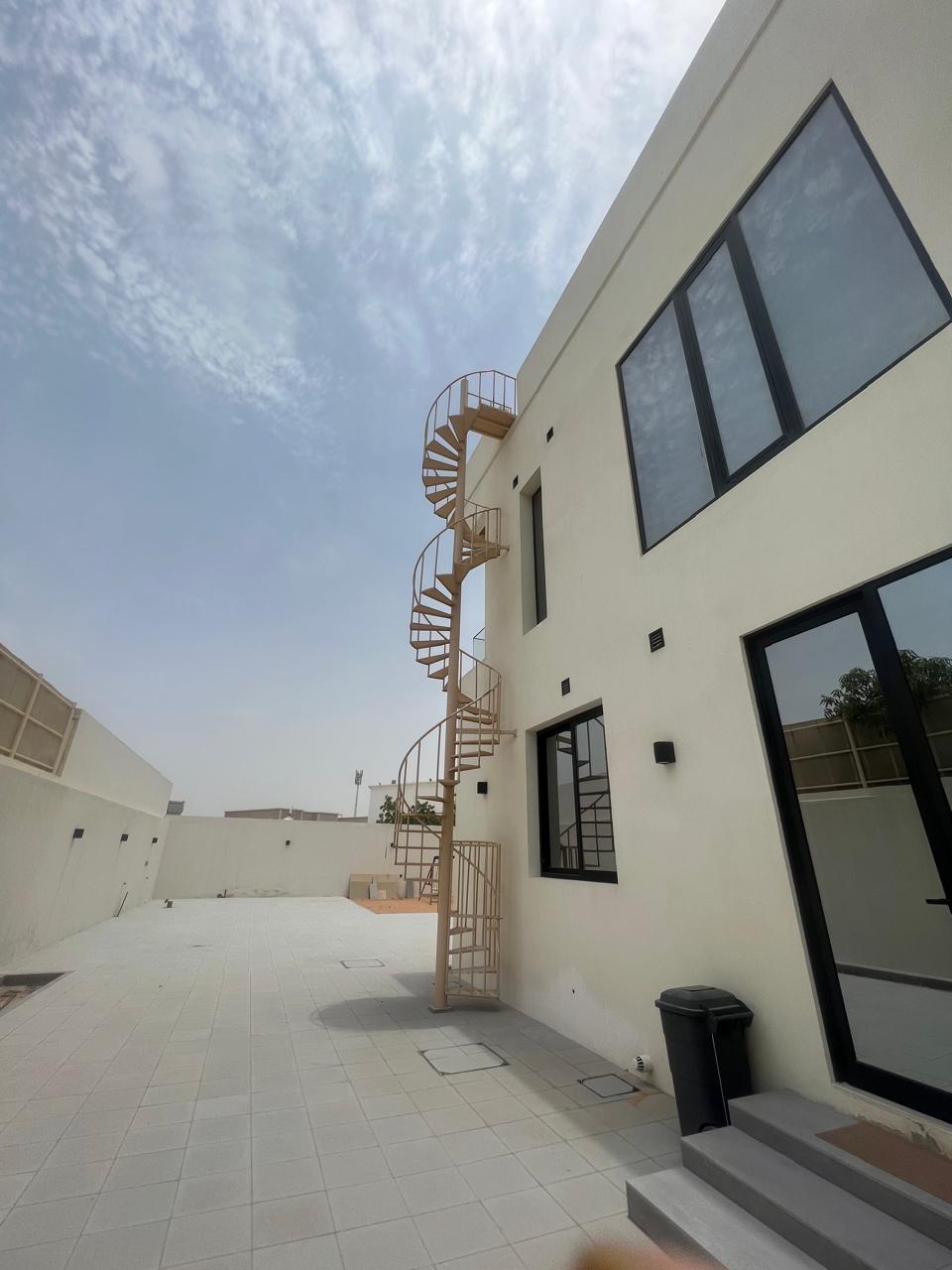

Full-width architectural spiral staircase for villa roof terraces, showroom upper levels, and commercial mezzanines where visual quality matters alongside function. Wider tread profile, decorative handrail options, and custom tread design. Available in stainless steel or mild steel with high-quality powder coat finish. Commonly specified for Dubai and Abu Dhabi premium villas.
Fixed vertical access ladder for rooftops, elevated platforms, and service areas under 3 metres where a safety cage is not required. Flat bar or round bar rungs at 250–300mm centres welded to two parallel uprights. Wall-mounted with standoff brackets. Painted, powder coated, or galvanized finish. Common for low-access platforms in Sharjah and Ajman factories.

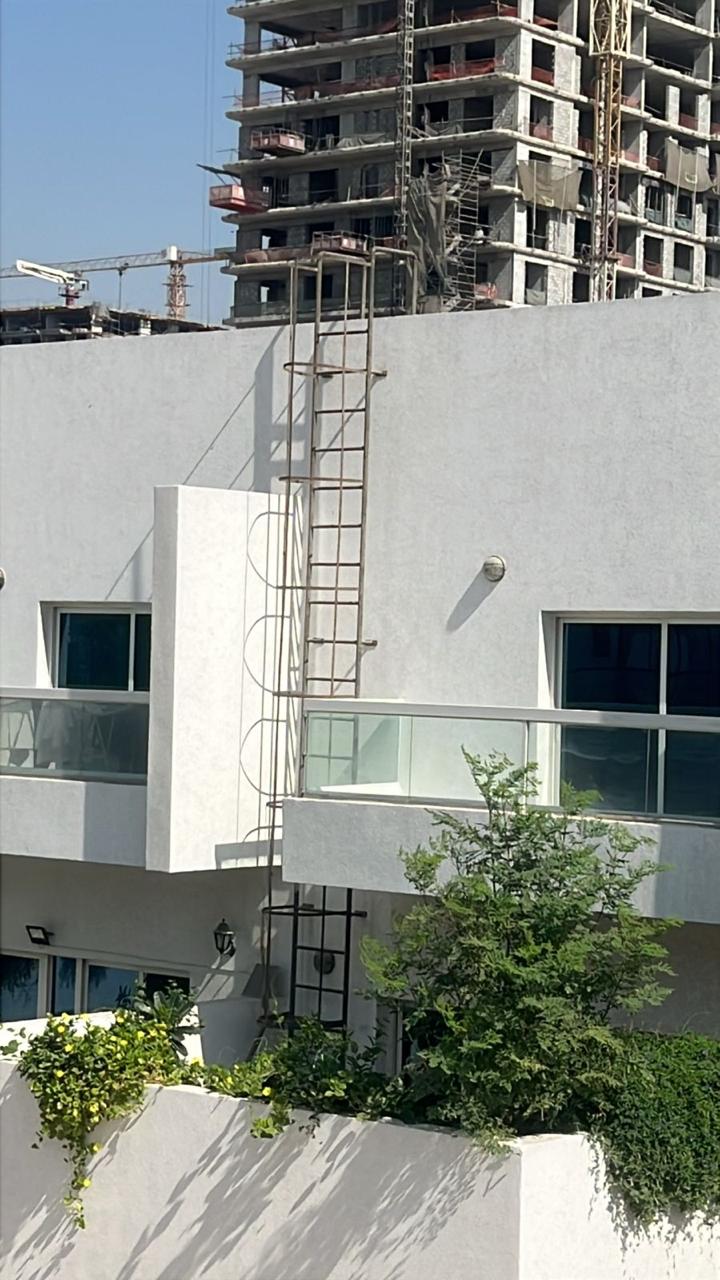

Fixed vertical ladder with full safety hoop cage for any climbing height above 3 metres. The cage consists of steel hoop rings fixed to the ladder uprights at maximum 900mm centres, forming a protective enclosure around the climber from 2.5 metres above the base upward. Required by UAE OSHAD standards for fixed industrial ladders in factory, warehouse, and rooftop applications across all Emirates
Hot-dip galvanized cat ladder for permanent outdoor installation in UAE's humid coastal environment. Galvanizing applies a zinc coating of 85 microns or more to all steel surfaces including the inside of hollow sections, providing 25 to 40 years of corrosion protection in UAE coastal conditions. Specified for rooftop water tank access ladders in Dubai, Abu Dhabi seafront buildings, and Ajman coastal industrial properties.
Stainless steel cat ladder for applications where corrosion resistance, hygiene, or visual quality is a priority. Grade 304 for general UAE outdoor use including villa roof access and commercial roof ladders. Grade 316 for food and pharmaceutical factory roof access, pool equipment rooms, and any application where chlorine or salt water contact is possible. Mirror or satin finish available for premium installations.
Which material is right for your UAE ladder?
// Painted or Powder Coat
UAE workplace safety standards reference fixed ladder safety based on climbing height. This table shows what is required at each height band. We apply these standards on every cat ladder we install across Dubai, Sharjah, Abu Dhabi, and Ajman.
// Galvanized Inside and Out
Best for outdoor rooftop, water tank access, and any exposed application in UAE coastal or humid conditions. Zero maintenance after installation. The correct choice for most Sharjah and Ajman industrial cat ladders.
// Grade 304 or 316
Best for food and pharmaceutical factories, pool rooms, premium villa roof access, and coastal marine environments. Grade 316 for chlorine and salt water exposure. Zero maintenance, premium appearance.
Every application below is a real project type we complete regularly for UAE clients across all four Emirates.
Fixed cat ladder for access to rooftop water storage tanks on villas, apartment buildings, and commercial properties. The most common cat ladder application across all four Emirates. GI galvanized ladder with safety cage for tank heights above 3 metres. Anti-slip rungs. Non-negotiable safety cage as standard on all tank ladders we supply.
Industrial cat ladder with full safety cage for factory and warehouse roof access across Sharjah Industrial Area, Dubai Al Quoz, Abu Dhabi Mussafah, and Ajman Free Zone. Required for roof maintenance, AC unit servicing, water tank inspection, and solar panel access. GI or mild steel. Landing platform at roof level with safety gate.
Compact spiral ladder or straight access ladder for mezzanine floors in UAE warehouses and factories. Where floor area is limited, a spiral ladder uses minimum footprint. Where straight access is preferred, a fixed straight access ladder with handrail provides quick, safe access to the mezzanine level. Often combined with our mezzanine floor installation as a complete package.
Spiral staircase for villa roof terrace access across Dubai, Sharjah, Abu Dhabi, and Ajman. Compact spirals fit within the villa back garden or through a ceiling opening. Mild steel with powder coat to match villa interior, or galvanized for exposed external installations. Landing platform at roof level with railing around the opening.
Fixed access ladder to industrial equipment platforms, elevated machinery, boiler access decks, and process vessel inspection points in UAE factories. Designed to the specific height and access direction required by the equipment layout. Safety cage on all vertical sections above 3 metres. Anti-slip grating or chequer plate step platforms at intermediate levels.
Permanent GI cat ladder for rooftop solar panel maintenance access and HVAC unit servicing on commercial and industrial buildings across UAE. As solar installations increase across Dubai, Sharjah, and Abu Dhabi commercial rooftops, safe permanent access ladders are required by solar installation companies and building owners for annual panel cleaning and inverter servicing. We install these ladders as part of solar project support or standalone.
Spiral Ladder Specifications
Cat Ladder Specifications
Safety Cage Specifications
Fixing and Installation
Where we install ladders
all four emirates
Active teams covering every Emirate. No travel surcharges. Same quality and standards across all four cities.
Ladders in Dubai
Dubai generates the widest variety of spiral ladder and cat ladder requests we receive across the UAE. Villa owners in Jumeirah, Al Barsha, Mirdif, and Arabian Ranches contact us for spiral staircases to their roof terraces and loft spaces, where the compact spiral form fits through standard ceiling openings without requiring structural wall removal. Dubai villas tend to have higher ceiling heights than other Emirates, which makes them ideal candidates for spiral staircase installations.
Industrial and commercial clients in Dubai Al Quoz, Dubai Investment Park, and Jebel Ali request permanent cat ladders with safety cages for warehouse rooftop access, water tank ladders on apartment buildings, and platform access ladders for factory equipment. DEWA regulations in Dubai also reference permanent safe roof access as a requirement for buildings with rooftop electrical equipment, which drives demand for cat ladder installation across Dubai commercial buildings.
Our Dubai team responds to enquiries within 2 to 3 hours. Site visits in most Dubai areas can be arranged the following morning. GI cat ladders ordered through our Sharjah workshop are typically ready within 5 to 8 working days for standard Dubai applications.
Blackgold Steel and Aluminium is based in Sharjah. Our main fabrication workshop operates in the Sharjah Industrial Area, which means every Sharjah job starts with faster turnaround, lower transport cost, and a team that already knows the layout of Sajaa, Sanaiya, Hamriyah, Juwaiza, and Sharjah Free Zone inside out.
Sharjah villa owners across Al Nahda, Al Taawun, Muwaileh, Halwan, Al Qasimia, and Sharjah City regularly contact us for villa gates, car sheds, pergola work, aluminium main doors, backside doors, villa hand railings, and roof water tank covers. Sharjah residential clients get the same fabrication quality as industrial clients, at a cost that reflects the shorter mobilization distance.
For Sharjah industrial area businesses, we handle mezzanine floors for warehouses, full shed construction, industrial fencing, pickup covers, and structural welding. We are familiar with Sharjah Municipality drawing requirements and assist with the structural engineer submission process when it is required for larger projects.
Steel car pergola sheds in Sharjah are one of our highest-volume works. Hundreds of Sharjah villa owners have used us over the past 15 years for this service alone. The Sharjah team is on standby to respond to new enquiries throughout working hours.
Abu Dhabi projects come with higher structural and compliance expectations, and Blackgold Steel and Aluminium is equipped to handle them. Whether the project is a villa gate in Khalifa City, a mezzanine floor in a Mussafah warehouse, a VIP car shed in Mohammed Bin Zayed City, or a full shed construction project in ICAD or KIZAD, our team brings the documentation, engineering coordination, and installation capability that Abu Dhabi projects demand.
We coordinate with structural engineers registered with the Abu Dhabi Department of Municipalities and Transport when project approvals require it. For clients who need assistance navigating the Abu Dhabi permit process, our team guides you through each step without additional consultancy fees.
Abu Dhabi villa owners in Khalifa City, Mohammed Bin Zayed City, Al Mushrif, Al Reef, and Yas Island have used us for villa main doors, swimming pool works, roof water tank covers, pergola structures, hand railings, and aluminium window replacements. The same attention we put into Sharjah residential work applies to every Abu Dhabi home and business project.
Ajman is a fast-growing residential and industrial Emirate and Blackgold Steel and Aluminium is active across both sectors here. The Ajman Free Zone and Ajman Industrial Area keep our team occupied with shed construction, mezzanine floor installations, industrial fencing, and structural welding for factories and trading companies.
For Ajman villa owners across Al Rawda, Al Jurf, Al Hamidiya, and Al Nuaimia, we handle villa gates, car sheds, backside doors, hand railings, BBQ area structures, roof water tank covers, pickup covers, and aluminium window and door replacements. Ajman clients do not pay a surcharge for distance from our Sharjah base. The quote reflects the project scope, nothing more.
Ajman enquiries typically receive a same-day response. Our workshop holds a stock of commonly requested Ajman project materials, which means faster project starts without waiting for additional deliveries. Steel car pergola sheds and villa gates are the two highest-demand services we handle in Ajman each month.
Call, WhatsApp, or fill the form. Tell us what ladder you need, the height, and where in UAE.
We visit your UAE property, confirm the exact height, material, cage requirement, and fixing method.
Fixed written price with full scope, material grade, safety cage specification, and timeline. No additions later.
Your ladder is fabricated in our Sharjah workshop to exact site dimensions. GI or SS treated as specified.
Our team installs at your UAE property, anchors all fixings, and verifies the ladder is level and secure before handover.
Indicative ranges based on recent UAE projects. Exact price confirmed after free site visit and dimension confirmation.
Cat Ladder — No Cage
Under 3m height, mild steel or GI, wall-mounted
Cat Ladder with Safety Cage
3–10m height, GI or SS, full cage, landing platform
Spiral Staircase
Compact to architectural, mild steel, GI, or SS
Sajaa, Sharjah
Jumeirah, Dubai
Al Nahda, Sharjah
Mussafah, Abu Dhabi
Ajman Free Zone
Sanaiya, Sharjah
Al Qasimia, Sharjah
Factory Manager, Sajaa, Sharjah
Villa Owner, Khalifa City, Abu Dhabi
Villa Owner, Al Rawda, Ajman
Warehouse Owner, Mussafah, Abu Dhabi
Villa Owner, Al Barsha, Dubai
Villa Owner, Muwaileh, Sharjah
Specific reasons UAE factories, villa owners, and property managers choose Blackgold for cat ladders and spiral staircases and stay.
We specify a safety cage on every cat ladder above 3 metres — not just when a client asks for one. UAE OSHAD standards require this. Contractors who install cageless ladders above 3m at cost-cutting leave the property owner exposed to safety non-compliance and liability. We do not do this.
We measure every ladder installation at your actual site before fabricating. Heights, fixing points, standoff clearances, top landing positions, and cage start heights are all confirmed from site measurements. No standard-size ladders delivered and then found to be too short or incorrectly positioned.
Many contractors install painted mild steel where GI is needed, or GI where SS is required. We assess the environment — indoor vs outdoor, coastal proximity, humidity level, any chemical exposure — and specify the correct material grade before fabricating. This is what determines whether your ladder lasts 5 years or 35 years.
All spiral ladders and cat ladders are fabricated to your site dimensions in our Sharjah Industrial Area workshop. You deal with one team from site visit to installation. No third-party fabricator who received a set of dimensions and interpreted them differently than your actual site requires.
AFZA safety inspections, Sharjah Municipality structural checks, OSHAD references for fixed ladder safety, and DEWA rooftop access requirements — we know what each authority checks and we build to those standards before any inspection is scheduled. Most ladder projects we complete pass first inspection.
These are the questions UAE factory managers, villa owners, and property developers ask most often before confirming a ladder project. Call or WhatsApp us directly if your question is not listed.
Our team responds to calls and WhatsApp messages within 2 hours on business days. Saturday to Thursday, 8 AM to 6 PM. All Emirates covered.
Yes, for any fixed cat ladder with a climbing height above 3 metres in a workplace or commercial building in the UAE. UAE OSHAD standards and the UAE Federal Labour Law reference safety cage requirements for fixed access ladders in industrial and commercial settings. AFZA, Sharjah Municipality, and Abu Dhabi OSHAD inspections check for cage compliance on fixed ladders. We specify and install safety cages as standard on all cat ladders we supply above 3 metres.
For a front sitting area in Ajman, opal polycarbonate roof is the most popular choice because it maintains a bright, open feel while blocking direct UV and heat. If the sitting area faces west or southwest and receives intense afternoon sun, a motorised louvre system gives you the flexibility to close for afternoon shade and open for cool winter evenings. We assess the sun orientation at your Ajman property during the site visit and recommend accordingly.
A basic cat ladder without safety cage for heights under 3 metres in mild steel or GI typically costs between AED 600 and AED 1,800 in UAE. Cat ladders with full safety cage for industrial rooftop access of 3 to 10 metres range from AED 1,800 to AED 6,500 depending on the total height, material grade, number of rest platforms, and roof landing configuration. We give an exact written price after measuring your site.
For permanent outdoor rooftop cat ladders in Dubai, Sharjah, Abu Dhabi, and Ajman, we recommend hot-dip galvanized steel as the first choice. The galvanizing process coats every surface of the steel including inside hollow sections with a 85-micron zinc layer that provides 25 to 40 years of corrosion protection in UAE coastal conditions. Mild steel painted ladders rust significantly faster in UAE humidity and require periodic maintenance. Stainless steel is specified for food factories, pharmaceutical facilities, and any application where hygiene or chemical exposure is a factor.
A compact spiral ladder for a villa roof terrace or mezzanine access typically takes 5 to 8 working days from confirmed order — including fabrication in our Sharjah workshop and installation at your property. An architectural spiral staircase of 1000mm or wider with custom tread design takes 8 to 12 working days. We confirm the exact timeline in writing when we send your quote after the site visit.
For our most compact spiral ladder at 600mm diameter, the minimum ceiling opening required is approximately 650 to 700mm square or round. For standard 800mm diameter spirals, the opening should be 850 to 900mm. For 1000mm architectural spirals, 1050 to 1100mm. We confirm the exact required opening during the site visit and advise on any reinforcement needed if the opening needs to be cut through the ceiling slab.
Yes. Cat ladder wall brackets and base plates are fixed using chemical anchor bolts drilled through the tile into the structural wall or slab below. We use the minimum number of anchor points required for structural integrity, seal around each anchor point after installation to prevent water ingress, and apply a protective backing behind each bracket to prevent surface scratching. This method is our standard approach on all UAE villas and buildings with existing tile finishes.
Yes. We install spiral ladders and cat ladders across Dubai, Sharjah, Abu Dhabi, and Ajman with no additional travel surcharge for any of these four Emirates. Our workshop is in Sharjah which gives the fastest fabrication and delivery turnaround for Sharjah and Ajman clients, while Dubai and Abu Dhabi projects are handled by our teams that work in those Emirates regularly. Response to enquiries from any of the four Emirates is typically within 2 to 3 business hours.
Cat ladder with cage or compact spiral staircase, GI or stainless, Dubai villa or Sharjah factory, our team is ready to advise on material, specification, and safety requirements. Call, WhatsApp, or fill the form for a free site visit anywhere in the UAE.
